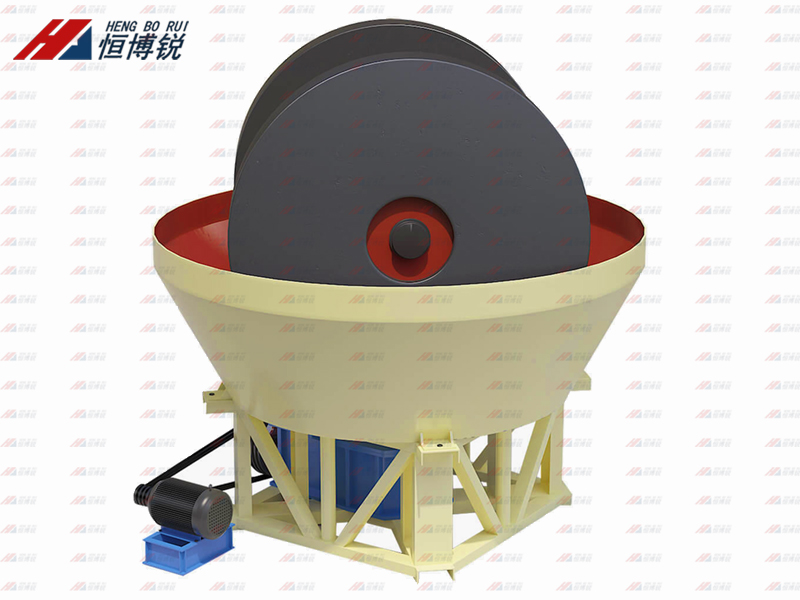

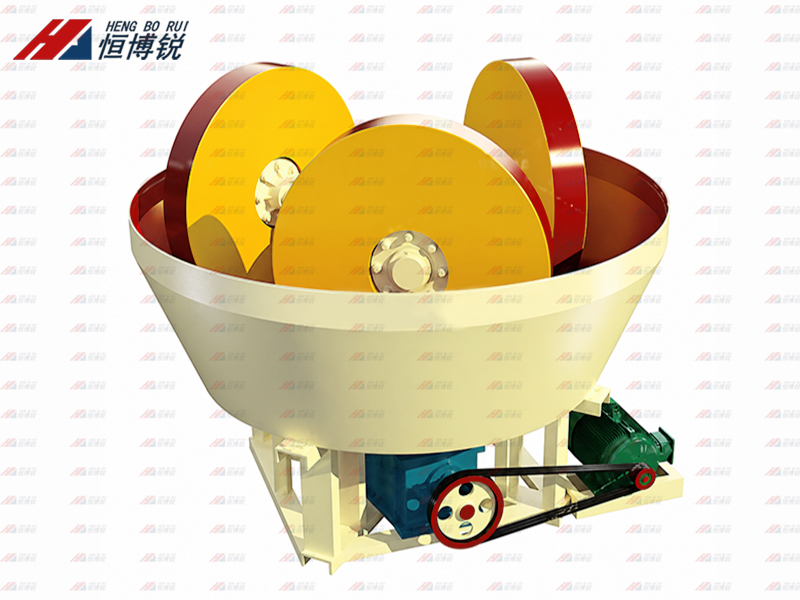

Wet Pan Mill is used for grinding gold ore, especially small gold rock stone, which can grind maximum feed size is 30 mm into 100-150mesh. Many customers from Africa would like to import wet pan mill because of low cost and high productivity. The most important thing is that our customers can get pure gold directly after wet pan mill, which is suitable for people who want to begin small business.
Reliable mechanical design with minimal operational requirements.
Uses less power compared to ball mills for similar output.
Effective for gold amalgamation due to its grinding and mixing action.
Can process both free-milling and refractory ores.
Reduces dust pollution and enhances mineral liberation.
| Model | Feeding Size(mm) | Output Size(mm) | Capacity(t/h) | Rotation Speed(r/m) | Power(kW) | Weight (t) |
| 1100 | <20 | <1 | 0.5 | 11-19 | 5.5 | 4.8 |
| 1200 | <20 | <1 | 0.8-1 | 11-19 | 7.5 | 5.4 |
| 1400 | <20 | <1 | 1.2-1.8 | 18-21 | 15 | 9.5 |
| 1500 | <30 | <1 | 2-3 | 18-22 | 22 | 11 |
| 1600 | <30 | <1 | 3-4 | 18-20 | 30/37 | 12.5 |

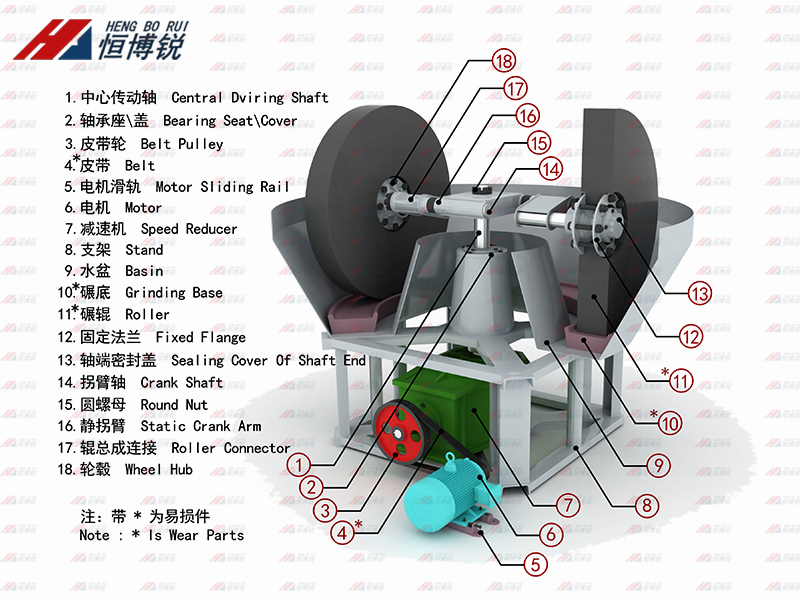

Main parts of wet pan mill are frame, basin, grinding roller, grinding base, speed reducers, motor and etc. Firstly, motor transmits power to speed reducer, then center driving shaft transmits into horizontal shaft, finally grinding roller will move counter clock wise and material will be ground into fine particle in the wet pan mill.
1. Ring Material: casting steel, iron, and manganese steel.
2. Smooth surface,no sand holes on the grinding roller
3. Mn-steel alloy material of grinding roller, and wearable&Longer service life
4. Basin: 5mm thickness steel plate
5. Gearbox: Specially design for wet pan mill, 1-year quality guarantee

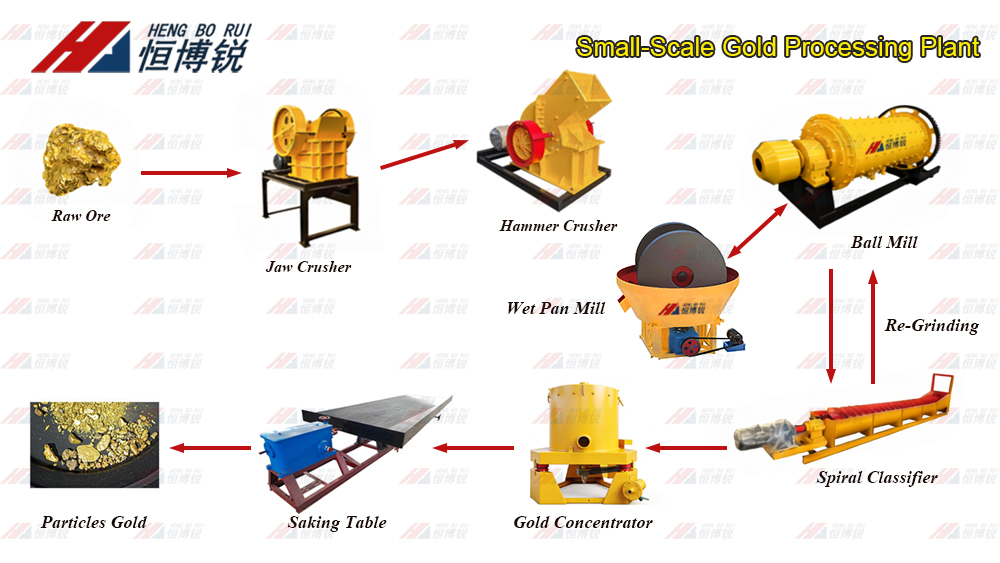

Original gold ore is crushed into under 25mm by a jaw crusher.
After crushing, the material is transported into the ball mill. After being ground by a ball mill, some of the rock stones are ground into 0.074-0.6 mm.
Roll gold machine/wet pan mill/wet grinding mill for sale! Click to explore more stone crusher machines. If you are also interested in ball mill, flotation machine, small scale mining equipment and so on, make a quick quota to get the price, please feel free to contact us.
