Introduction

Gold is a special currency for reserves and investment, and it is also an important material for jewelry, electronics, modern communications, aerospace and other sectors. The value of gold motivates people to prospect, mine and process more gold ore to extract more gold. That's why you need gold mining equipment, more specifically mineral processing equipment.

This rock gold process uses crushing, closed-circuit grinding, gravity roughing and shaking table concentration to separate high-purity gold concentrate from hard rock ore.

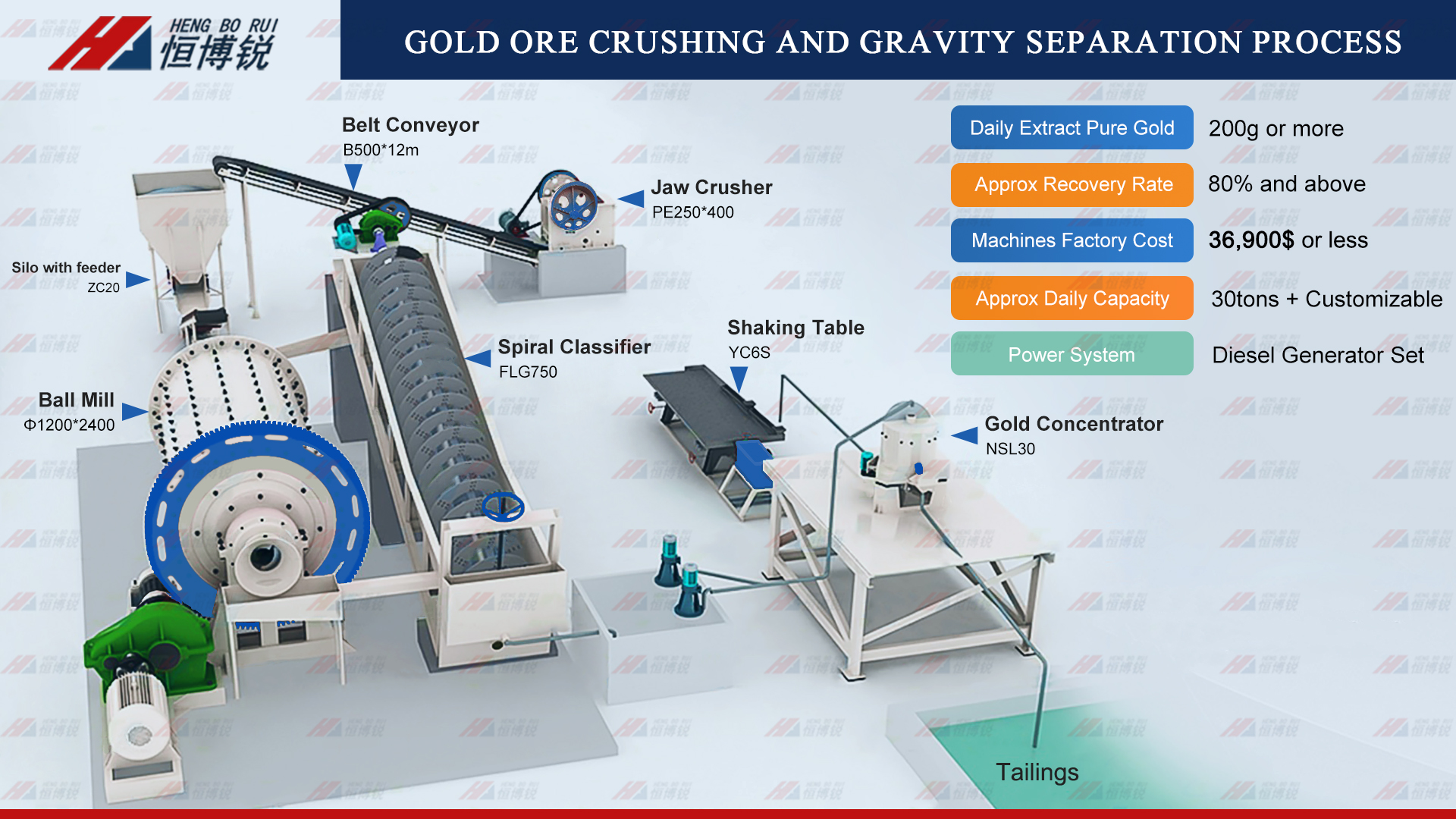

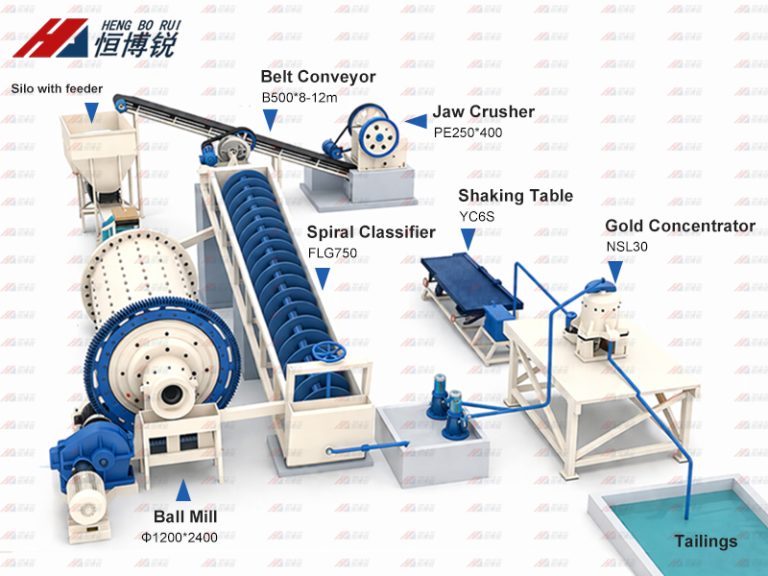

The Small and middle scale gold gravity separation processing plant

1. Crushing Stage

Raw ore is fed into a vibrating feeder and then crushed by a jaw crusher (and optionally a secondary crusher) to reduce the size to below 10–20 mm, ensuring suitability for downstream processing.

2. Screening Stage

Crushed material is screened by a vibrating screen to separate qualified particles from oversized material. Oversized particles are returned to the crusher, while qualified material proceeds to the next stage.

3. Grinding (Optional)

For hard rock ores where gold is locked within the matrix, a ball mill or wet pan mill is used to achieve proper liberation. This stage is typically not required for alluvial or oxidized ores.

4. Classification

Material is classified by particle size using spiral classifiers or hydrocyclones:

Coarse particles are directed to jigs. Fine particles are directed to centrifugal concentrators or shaking tables.

5. Gravity Concentration

Jig Machine: Recovers coarse gold with high capacity and low operating cost

Centrifugal Concentrator: Efficiently recovers fine gold with high recovery rates

Shaking Table: Final cleaning stage to improve gold grade and remove impurities

6. Tailing Treatment

Tailing can be further processed through secondary recovery systems or, if necessary, treated by CIL/CIP processes to recover ultra-fine gold.

Advantages and Features

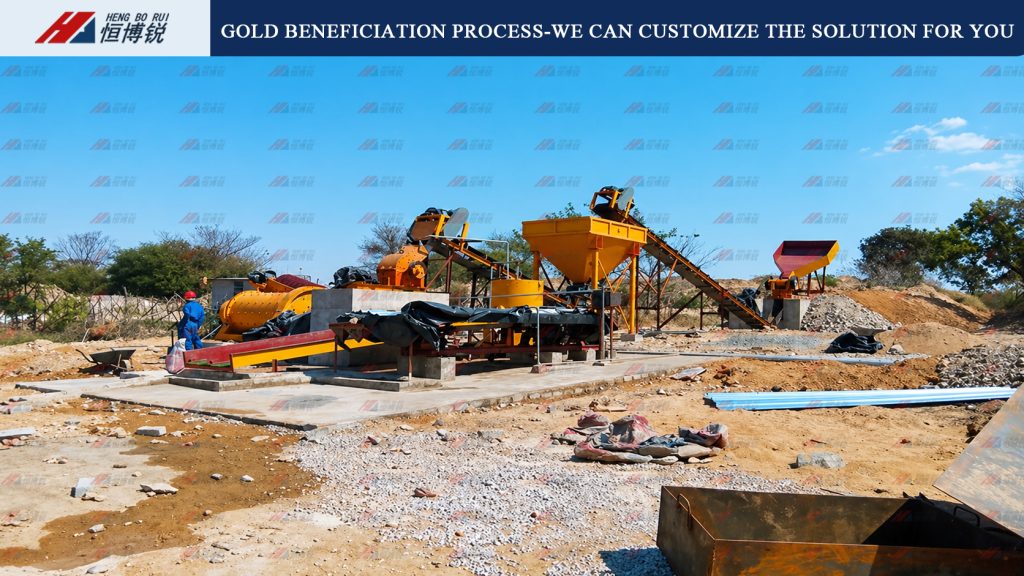

Gold Ore processing Plant

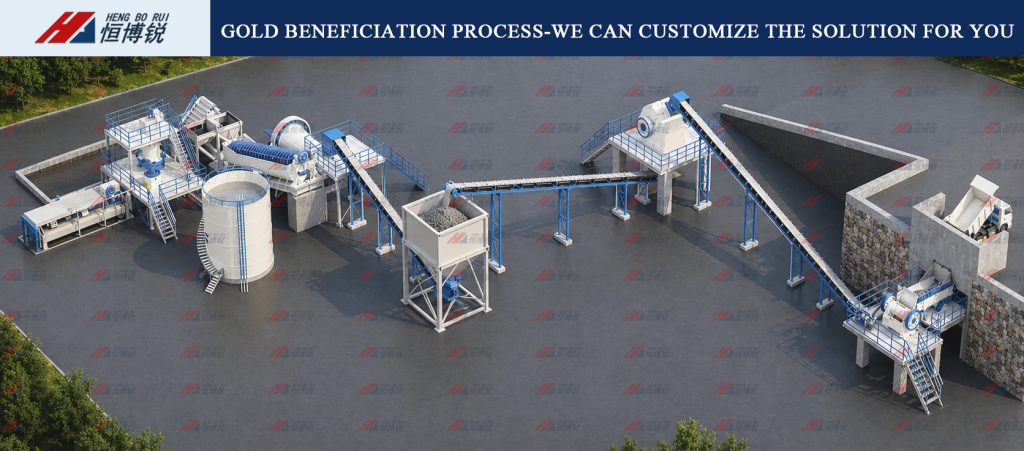

The common process in a full gold ore processing plant is as follows: Raw Ore → Washing → Crushing & Screening → Grinding & Classification → Beneficiation (Flotation/ Gravity/ Magnetic separation) → Leaching (Cyanide/CIL/CIP) → Adsorption (Activated Carbon) → Electrowinning/Desorption → Smelting → Pure Gold Ingot.

(Note: All Tailored Design For Your Ore, Capacity, Budget, Needs)

Whether you need to process high-sulfur ores, fine-grained disseminated ores, placer/alluvial gold, rock/vein gold, complex sulfide gold ore, or associated gold deposits, or face extreme working conditions such as severe cold or high altitude. Our processing solutions have been successfully applied in 40+ gold mining regions, including Ghana, Senegal, South Africa, Kenya, Zimbabwe, Nigeria, Mozambique, Tanzania, Zambia, Congo, Indonesia, Côte d'Ivoire, Ethiopia, Mali, Angola, and Niger, etc; all ensur a stable recovery rate of 90%+.

→→→Hengborui Machinery provides you with customized full solutions services, including process design, equipment manufacturing, and configuration automation equipment.
