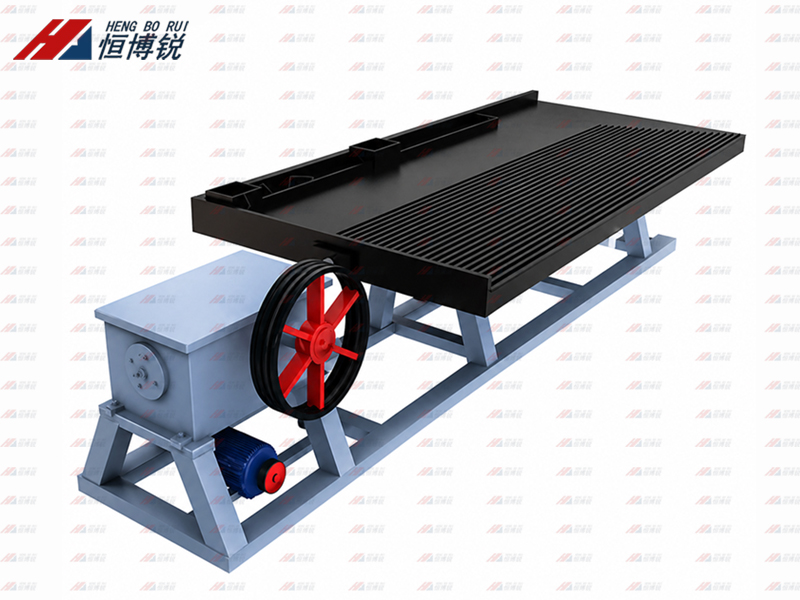

Shaking Table also known as gold shakers, or gold separation tables, is a fine gold recovery equipment common in the gold shaker wash plant, alluvial gold mining plant to separate concentrates, medium concentrates, and tailings according to material density, and grain size.
Shaking Table is a mine selecting machine for fine materials working by gravity. It is Widely used in tin, tungsten, gold, silver, lead, zinc, antimony, bismuth, iron, manganese, titanium, iron and coal.Our factory has a long history of producing shaking table,And constantly developing innovation,From the initial straight shaking table to the single curved wave shaking table (in the 70s of last century); to the hyperbolic wave shaking table(in the 90s of last century), The amount, recovery, and enrichment ratio of the shaker are all greatly increased.
Gold mining shaker table can not only be used as an independent beneficiation machine, but it often works with jig machines, centrifugal concentrators, sluice boxes, flotation equipment, magnetic drum separators, spiral classifiers, and other ore dressing equipment.

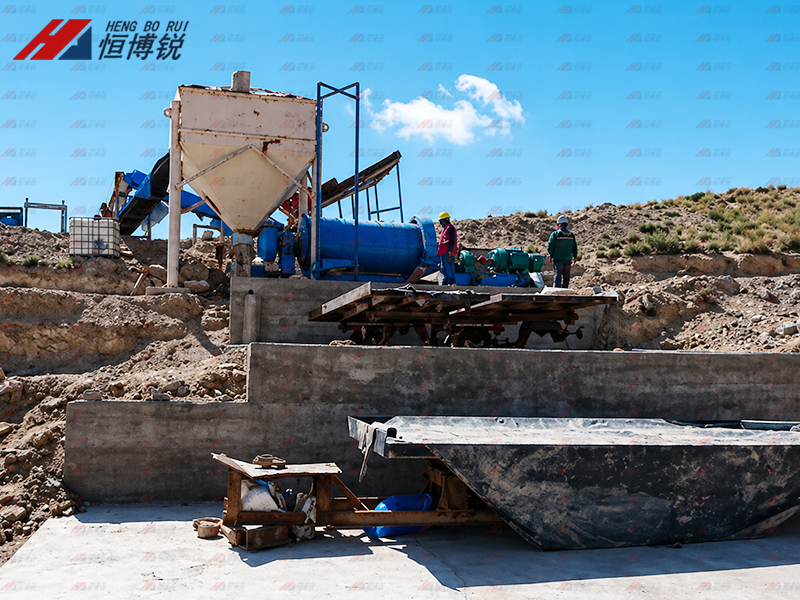

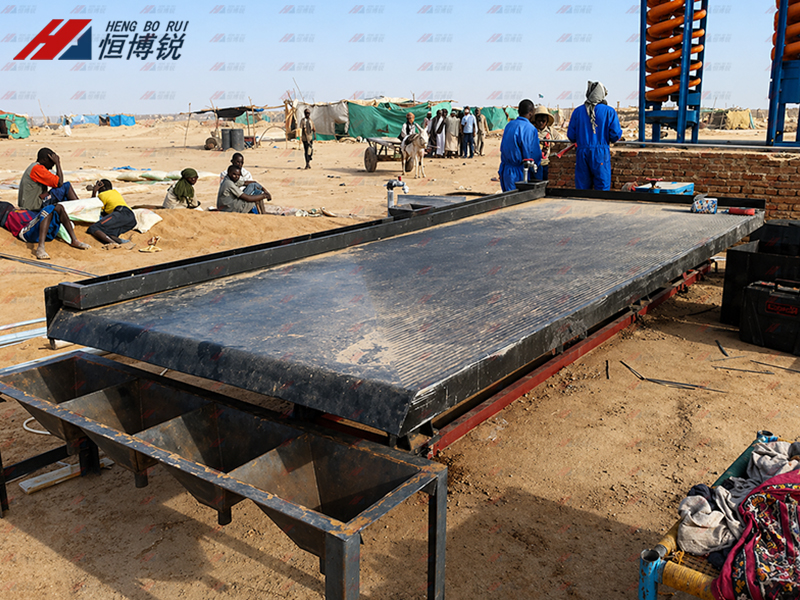

It is often connected with gold trommel scrubber, trommel screen, centrifuge concentrator, sluice box and other beneficiation equipment, and is used in alluvial gold processing plants.
High enrichment ratio, good separation efficiency, easy care, easy adjustment, simple operation, and it can obtain the final concentrate and tailings at one time.
The bed surface is flat, has good corrosion resistance, is durable, not easily deform, has a long service life, and does not need to be replaced frequently.
The separation zone is clearly visible (the boundary between concentrate and tailings is obvious), which facilitates real-time adjustment of process parameters.
Pure physical separation, no chemical pollution, wastewater can be 100% recycled, environmentally friendly, and economical equipment.
Easy installation, simple operation, low cost, high cost performance, good sorting performance and stable indicators.

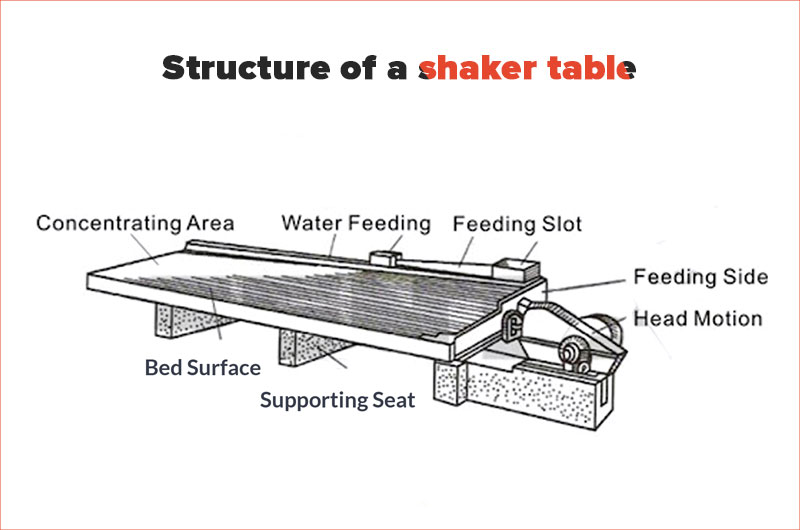

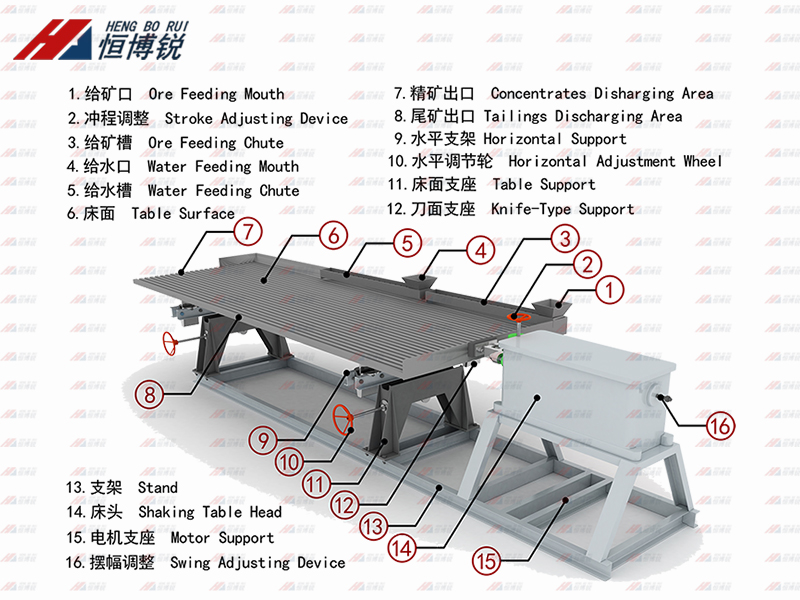

【Main parts】Head, electric motor, slope regulator, ore tank, water tank, compound strip, and lubrication system.
【Shaking table working principle】Shaking table mineral separation is an inclined table, the combined action of the symmetrical reciprocating motion of a mechanical slab and the flow of water on a thin inclined plane, causes loose layering and zoning of ore particles on the table surface, thereby causing the mineral separation process to be carried out according to different densities.
| Name | Grit concentrator table | Fine sand concentrator table | Sludge concentrator table | |
| Bed surface Dimensions | Length (mm) | 4450 | 4450 | 4450 |
| Driving part Width (mm) | 1855 | 1855 | 1855 | |
| Concentrate part Width (mm) | 1546 | 1546 | 1546 | |
| Max.feeding size(mm) | 2 | 0.5 | 0.15 | |
| Feeding amount (t/d) | 30-60 | 10-20 | 15-25 | |
| Feeding thickness (%) | 25-30 | 20-25 | 15-25 | |
| Stroke (mm) | 16-22 | 11-16 | 8-16 | |
| Frequency (f) | 45-48 | 48-53 | 50-57 | |
| Bed surface Water quantity (t/d) | 80-150 | 30-60 | 10-17 | |
| Bed surface Horizontal obliquity(°) | 2.5-4.5 | 1.5-3.5 | 1-2 | |
| Bed surface Portrait obliquity(%) | 1.4 | 0.92 | ---- | |
| Table board corner(°) | 32-42 | 40 | 42 | |
| Concentrating area(㎡) | 7.6 | 7.6 | 7.6 | |
| Bed surface Length ratio | 2.6 | 2.6 | 2.6 | |
| Shape of side-bed surface | Rectangle | Zigzag | Triangle | |
| Motor power(kw) | 1.1 | 1.1 | 1.1 | |
| Transmission device | Eccentricity Linkage | |||
If you are also interested in ball mill, flotation machine, small scale mining equipment and so on, make a quick quota to get the price, please feel free to contact us.
